10 Gigabit Ethernet Switch
- Intel FM3224/FM4224 10 Gigabit Ethernet low latency switch based AMC carrier board in a single slot aTCA form factor
- Intel® Core™ i7 processor w/two channel 72-bit ECC DDR3 memory running up to 1066MHz
- The board supports up to 3 Mid-Size B+ AMC bays, each with two 10GBase-KX4 Fat Pipe and two 1000Base-KX Base interfaces

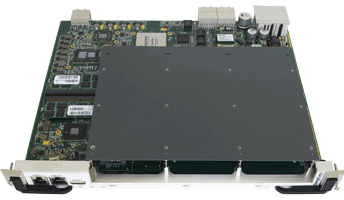

The PARPRO PSA-110 ATCA AMC Carrier 10G Managed Switch Card is the Intel FM3224/FM4224 (previously Fulcrum) 10 Gigabit Ethernet low latency switch based AMC carrier board in a single slot aTCA form factor. The board supports up to 3 Mid-Size B+ AMC bays, each with two 10GBase-KX4 Fat Pipe and two 1000Base-KX Base interfaces. Optionally, two SFP+ interfaces and an HD-15 video connector are available on the front panel when used in a 2 AMC bay configuration. The PSA-110 provides four 10GBase-KX4 Fabric Channel and five 1000Base-T Base Channel interfaces to the aTCA backplane. Therefore the PSA-110 can be used either as a Node Board or a 5-slot Hub Board in a standard aTCA chassis (another example application could use 5 PSA-110 boards all operating in a full mesh configuration). The 3 AMC bay and 2 AMC bay configurations both support front panel RJ-45 10/100/1000Base-T Ethernet, two USB ports, and a serial port. There is also an RTM interface that supports two more USB ports and a digital video DisplayPort interface. The on-board 32-nm Intel Core i7 CPU with 72-bit DDR3 memory provides management functions for the Fulcrum switch, as well as providing a dual-core environment for running arbitrary application code. Management functions can either be provided by Fulcrum’s ControlPoint management application or by direct access to the FocalPoint API. CPU configuration options include multiple speeds, multiple memory configurations, multiple SSD sizes, and an optional PCIe connection to AMC B2 for use with AMC.1 cards or SCOPE-compliant AMC cards. Also available is CPU access to AMC.3 cards in any of the three AMC bays.
|10 Gigabit Ethernet Switch||Fulcrum FM4224 24-Port 10 Gigabit Ethernet Switch
On-chip Multi-port Stream Memory and buffer management
Cut-through, Priority queues and Jumbo Frame support for high-performance cluster
Extended VLAN for Logical Partitioning
Support for Fulcrum ControlPoint software for IP routing functions
|Switch Management Processor||Intel® Core™ i7 processor
Integrated Memory Controller Hub (MCH)
Ibex Peak-M Platform Controller Hub (PCH)
Two channel 72-bit ECC DDR3 memory running up to 1066MHz
4 GB SSD mass storage
SSD and PXE boot support
Serial console redirection
|AMC Bays||Three Mid Size B+ AMC Bays
Two 10GBase-KX4 interfaces on AMC Fat Pipe Lane[4:7] and Lane[8:11]
Two 1000Base-KX interfaces on AMC Common region Lane and Lane
Rotational Lane and Lane routing scheme for flexible storage support
|Front Panel Interfaces||RJ-45 10/100/1000 Ethernet, two USB 2.0 interfaces, COM port, and optional 2 SFP+ bays and HD-15 video, in lieu of one AMC bay|
|aTCA Backplane Interface||Five 1000Base-T aTCA Base Channel interfaces
Four 10GBase-KX4 Fabric Channel interfaces
|RTM Interface||Two USB 2.0 interfaces and a digital video DisplayPort interface.|
|Assembly options||3 AMC bay configuration (standard option).
2 AMC bay configuration; front panel adds 2 SFP+ interfaces and standard HD-15 analog video interface.
AMC bays’ Lane / Lane rotation between each other (standard option).
AMC bays’ Lane interfaces to CPU SATA ports (example application would support CPU access to AMC hard drives).
10GBase-KX4 interfaces on second AMC Lane[4:7]; note, this is the same as other AMC bays (standard option).
PCIe x4 interfaces to second AMC bay Lane[4:7]; allows CPU access via PCI Express to second AMC bay (other AMC lanes unchanged).
|Environmental||Operating temperature: 0 to 55 °C
Humidity: 0 to 95% (non-condensing)
Power Consumption: 85W (with no AMC cards installed)
|Regulatory||Designed and manufactured to meet the following requirements
FCC Class A
NEBS Level 3
Company will get certifications as required to meet specific customer requirements
