PCIe

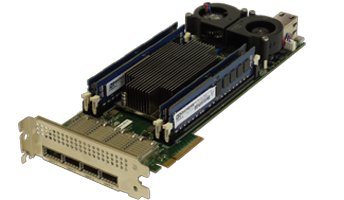

RPE-130 Broadcom XLP II Packet Processor Card
High Performance Network Processor PCI Express Card
Overview
The PARPRO RPE-130 is a high-performance network processor PCI Express card designed for use in PCI Express compliant systems. It features the latest Broadcom XLP9xx/7xx Network Processor. The RPE-130 features 128GB of quad-channel 72-bit wide DDR3 ECC memory running up to 2133MT/s. Four QSFP/ interfaces are provided on the front panel, supporting 40GigE or 10GigE. Refer to the block diagram for detail.
Tech Specs
Network Processing Units (NPUs)
Broadcom XLP 900 or 700 series processor
· Single processor with clock rate of up to 1.8GHz
· Up to 16 cores and 64 nxCPU Virtual CPUs
Memory
Up to 128 of DDR3 memory w/ECC on quad-channel x72 bus
DDR3 clock rate up to 2133MT/s
Up to 64GB soldered down SSD
I/O Capabilities
Four front panel SFP/SFP+ sites
· Supports 40GigE or 10GigE (via breakout cable)
PCI Express Gen3 x8 base board
USB 2.0 Type A host connector
MiniUSB UART console
10/100/1000Base-T RJ45
Broadcom ICI coherent Processor interconnect (XLP 900 series only)
Mechanical
Standard dual-slot PCI Express card form factor
· full length height
· 6-pin aux power connector
Environmental
Operating temperature range: 0 to 35 °C
Humidity: 0 to 95% (non-condensing)
Power Consumption: TBD
